Yardley’s Ultrasonic & Thermal inserts are designed for superior holding power in ABS, polycarbonates, thermoset plastic and thermoplastics. Yardley manufactures a thermal inserter kit, complete with the gun, temperature control unit and adapters, as well as replacement components for the gun and thermal box.
Watch this short video to determine if this is the right install type for your job.

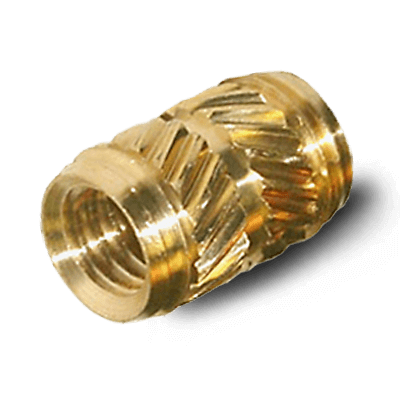

A simple, inexpensive method for installing metal inserts permanently in thermoplastic. Ideal for prototype and low volume production. Permits accurate control of temperature to prevent damage to plastic. Provides a strong, permanent installation of inserts with high resistance to rotation and pull-out.
SELECT PRODUCTS

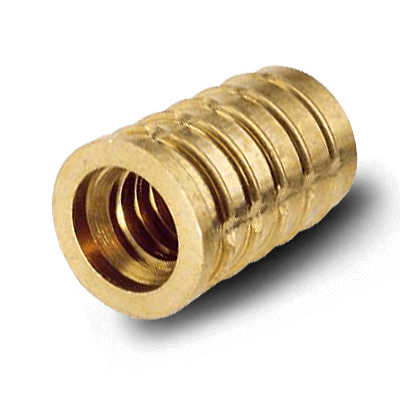

For use in thermoplastic materials such as ABS and polycarbonates. Intro-Serts have no sharp edges on their outer annular ribs to cause residual stress cracking. Install them fast and easily with ultrasonic or thermal insertion tools. Available in Brass, Aluminum and Stainless Steel.
SELECT PRODUCTS

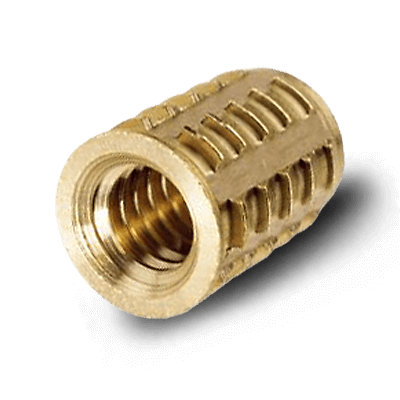

Versatile, economical and trouble free, they offer easy, high-speed installation. Curved hooks and lateral flutes lock them into plastics, particle board and wood. Install with ultrasonic or thermal tools or just hammer or press them in. Available in Brass.
SELECT PRODUCTS
Economical design features a lead on both ends making this insert ideal for high volume, automated production. Unique radial barbs provide strong resistance to pull-out and rotation in plastics and thermoplastics. Can be molded-in or installed with ultrasonic or thermal insertion tools. Available in Brass.
SELECT PRODUCTS
